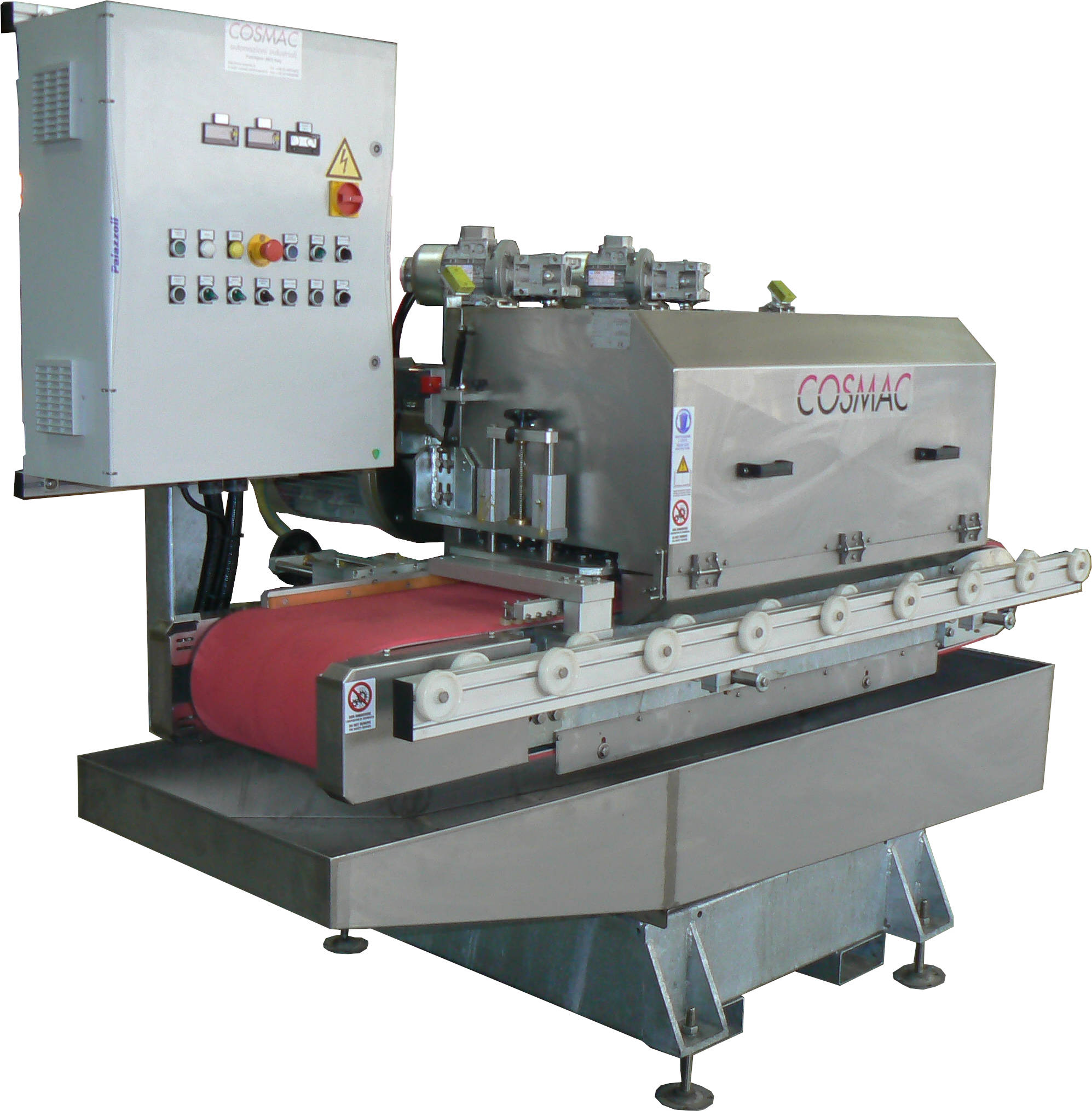

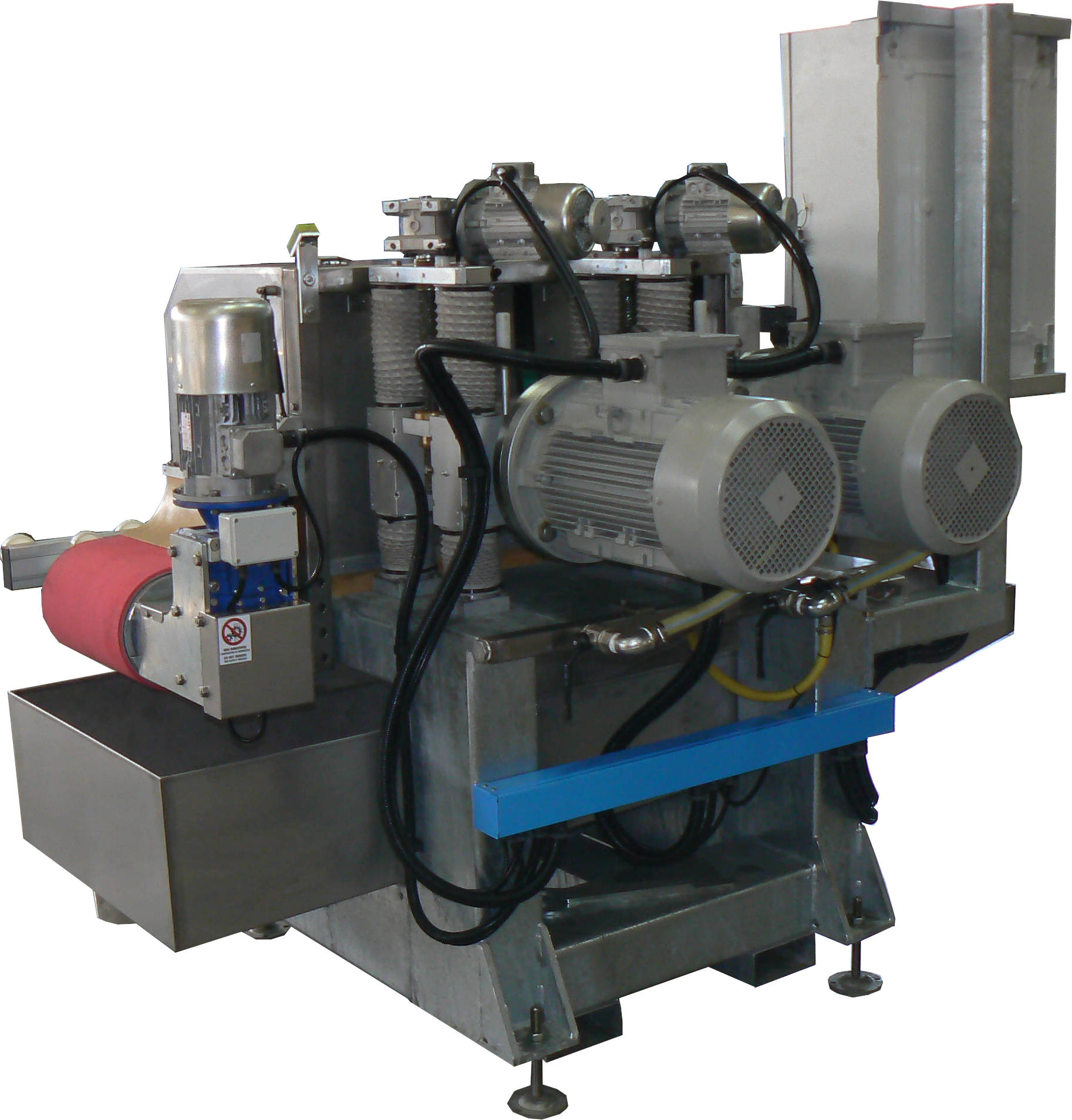

MT400

Linear cutting machine with belt and hot galvanized structure in stainless steel.
It\'s equipped with two cutting heads with supported shafts; the diamond disks for the cutting are assembled on chromium plated grinded sleeves allowing a quick replacement for the size change.
The main structure of the machine is in hot-dip steel, and all the parts coming into direct contact with water are in stainless steel. The main head casing is soundproofed so that the noise during operation is reduced to a minimum.
The machine is suitable for cutting any type of ceramic material, glass, marble, granite etc. Flexibility and reliability are the result of its structural strength and of carefully selected top-quality components, which also allow for the cutting of large widths.
Other basic details not to be disregarded are its user-friendliness along with a high value and quality of daily production rates.

technical datas
Power
25 Kw
Weight
1500 Kg
Length
2400 mm
Height
2315 mm
Width
1700 mm
Cutting heads
2
Motor spindle power
15 HP
Tape width
400mm
